Window & door profile moulds

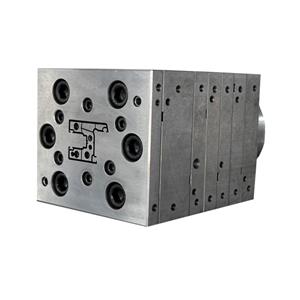

PVC window profile mould
$3,300–3,900 / set List range · Confirmed per CAD drawing
Tooling Specifications
- Minimum Order
- 1 set
- Applicable Polymers
- PVC / UPVC, hardened steel
- Steel Grade
- Hardened stainless steel (DIN 1.2316 / 3Cr17)
- Machining Precision
- Wire-EDM tolerances within ±0.02 mm
- Manufacturer
- Hubei Zhuotian Plastics Technology Co., Ltd., Huangshi, Hubei, China
Engineering & Extrusion Performance
Window profiles are a system, not a shape: wall thickness, chamber geometry and gasket seats all have to arrive together. This is the line we price highest in Huangshi’s mid-range because it is the line where steel and flow work decide whether a window plant makes money.
The written quote names the steel grade and hardness before you pay anything.
CAD Drawing Quotation & Trial Verification
Every set is priced from your profile CAD drawing with chamber balance verified before deposit. Includes pre-shipment trial video approval and formulation support.
Extrusion Die Set
Mirror-Polished Flow Channels Matched Vacuum Calibrator
